Modchip installation Switch OLED

The Installation

This page will guide you through the modchip installation process on "OLED" model Switch consoles. Everything you need will be listed and pictures of what your solder joints should (roughly) look like will be posted by each step. Specific steps such as photos of the screws you need to unscrew aren't mentioned here as they can be found on guides from iFixit (for example). It's expected for you to know what to unscrew.

Diode reading values

These values can differ from console to console. If your modchip installation works fine and doesn't match these exact values, it's not an issue. These values can act as "indicators" about what you might expect. Especially the C (DAT0) point can have a large range of acceptable values.

Positive to ground Negative to ground
SP1 ~0.420 SP1 ~0.520
SP2 ~0.25 SP2 ~0.20
A (CMD) ~0.470 A (CMD) ~0.875
B (RST) ~0.405 B (RST) OL
C (DAT0) ~0.435 C (DAT0) ~0.450-0.850
D (CLK) ~0.440 D (CLK) ~0.880
3.3v ~0.445 3.3v ~0.850

Requirements:

  • A soldering iron with a small(er) tip (preferably temperature controlled that can reach 350C consistently)
  • Good quality flux
  • The right screwdriver bits (+00 and Y1.5 bits)
  • Good quality 30-32 awg wire (such as Kynar wire, other wire can work as long as it's single core)
  • Thermal paste (preferably non-conductive)
  • Isopropyl Alcohol (preferably 95-99% IPA)
  • Your modchip (including the SoC ribbon cable and DAT0 adapter)
  • Kapton tape (optional, but recommended)
  • A dental pick or other thin and sharp tool (to scrape away the top layer of the PCB for the D point)
  • Toothpicks/Q-tips (to remove the thermal paste between the capacitors on the SoC)
  • Soldering tin (leaded is recommended, unleaded will work depending on your skill level)
  • Double sided tape
  • A fume extractor (for your own health and safety)
  • A microscope (optional but recommended)
  • UV Solder mask (optional but recommended)

Additional and/or optional requirements for the Kamikaze method:

  • A grinding pen such as the MaAnt D2 with 0.2mm tip (Kamikaze method users ONLY)
  • 32-36 awg magnet/enameled wire (Kamikaze method users ONLY)
  • Solder with the width of 0.8mm or smaller
  • A soldering iron tip like the TS-J02
  • UV Solder mask
  • UV Light

The Kamikaze method

The Kamikaze method is also covered on this page, be aware that this is a VERY risky procedure and that you should not attempt this without the required skills/tools. You will find the divide between the DAT0 Adapter and Kamikaze methods at step 14.

Note for stock RP2040 Zero development board users

If you use a stock RP2040 Zero development board, you will need to desolder the USB-C port,BOOT and RESET buttons before continuing. You'll also need to purchase the SoC ribbon cable separately together with 5x 0805 47Ω +-1% resistors (5x is recommended, 3x is possible in some instances). The resistors can be purchased on AliExpress or websites like Digikey or Mouser Electronics. The SoC ribbon cable can be purchased from AliExpress.

Instructions:

  1. Unscrew the Switch's backplate. back shield

  2. Remove the metal shield/cover (be careful with the antennas that are routed across the metal shield/cover) and disconnect the battery at the bottom right of the motherboard. shield-removed

  3. Remove the Gamecard reader/SD card reader board. gc-board-removed

  4. Remove the heatpipe/heatsink. heatsink-removed

  5. Remove the IHS (Internal Heat Spreader) to expose the bare SoC die and RAM chips. ihs-removed

  6. Remove and clean up the thermal paste on the SoC die and around/in-between the capacitors on the SoC using IPA.

    • You can also clean off the thermal paste between the IHS and heatpipe/heatsink in the meantime, the red-ish colored thermal goop between the heatpipe/heatsink and metal shield/cover can be left alone. clean-soc clean-soc-2

  7. Remove the fan and unplug the fan ribbon cable, joycon rail ribbon cables, screen ribbon cable and speaker connectors.

  8. Unscrew and remove the bottom bar of the shell.

  9. Remove the motherboard from the Switch casing. bare-mobo

  10. Remove the metal plate covering the eMMC chip on the back of the motherboard. (Only for people following the DAT0 adapter method.) emmc-shield

  11. Turn the motherboard back around, remove a part of the SoC/RAM frame next to the D(CLK) point and scrape away the D(CLK) point on the motherboard using a thin and sharp metal tool until the pad underneath is visible and open to the air (otherwise you won't be able to follow along with the next step). bare-d d-exposed

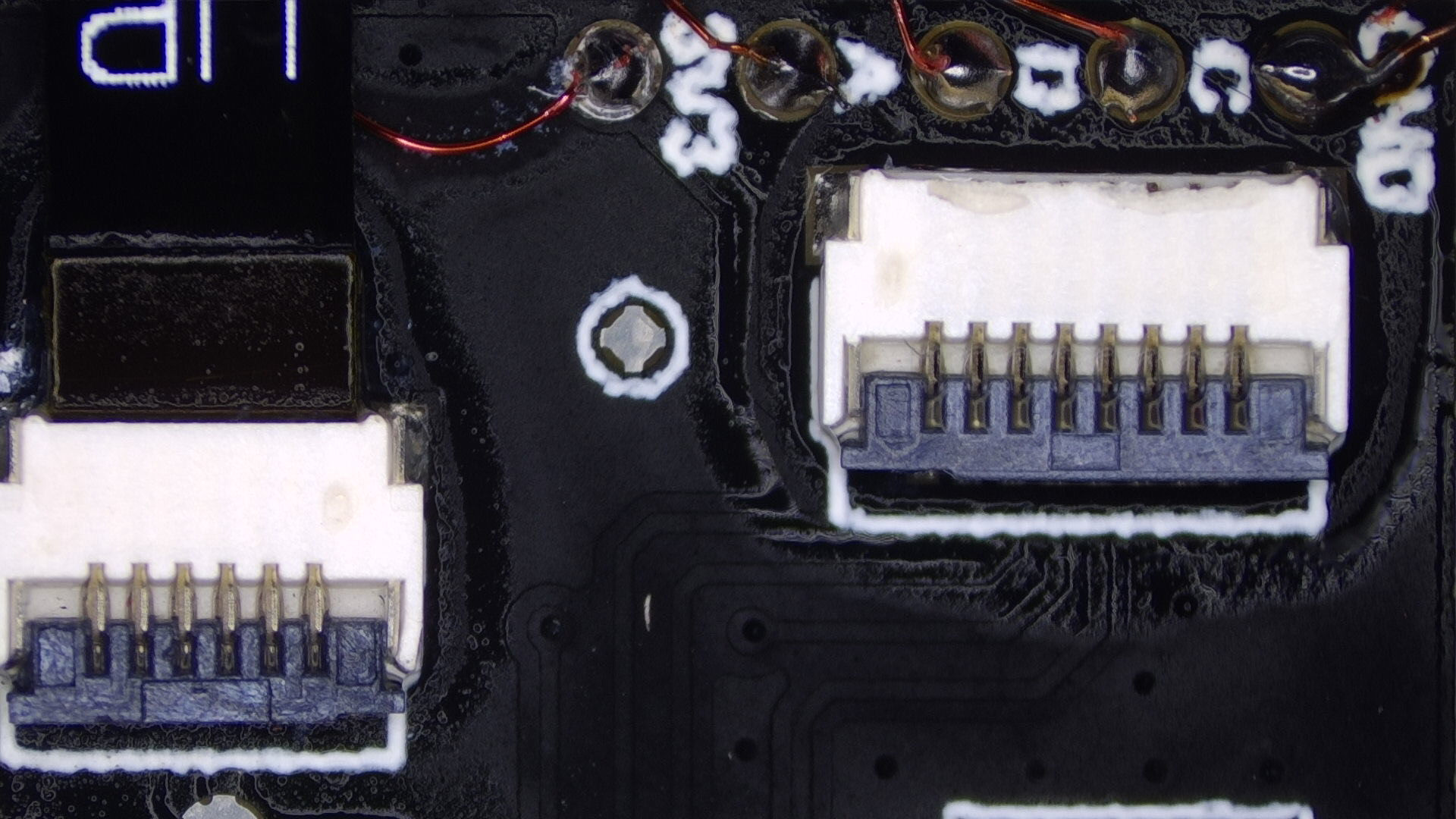

  12. Tin the D(CLK) point and wire, then solder a piece of your wire to the D point and solder it to the D point on the modchip.

    • Optional: Use UV solder mask on the D point. It's a very fragile point and is not something you want to have to potentially resolder in the future.
      d-solder d-soldered

  13. Tin your wire and solder a piece of wire to the bottom end of the A(CMD) resistor, then solder the other end of the wire to the A point on the modchip. Be careful, as heating this resistor up too much has the chance to kill the resistor or will cause it to stick to your soldering iron and wipe it off of the motherboard completely (this only happens if your soldering iron is too hot and hold it on the resistor for too long).

    • Optional: Use UV solder mask on the A point. It's a very fragile point and is not something you want to have to potentially resolder in the future.
      bare-a a-soldered

  14. C(DAT0) Point methods


  15. Now, we will locate the 3.3v capacitors near the top-middle on the front of the motherboard. Solder a piece of wire to the bottom end of the right capacitor and solder the other end of the wire to the 3.3v pad on the modchip. bare-3.3.v 3.3v-soldered

  16. Locate the GND (ground) pad on the middle-right side of the motherboard. Solder a piece of wire to it and solder the other end of the wire to the GND pad on the modchip. bare-gnd gnd-soldered

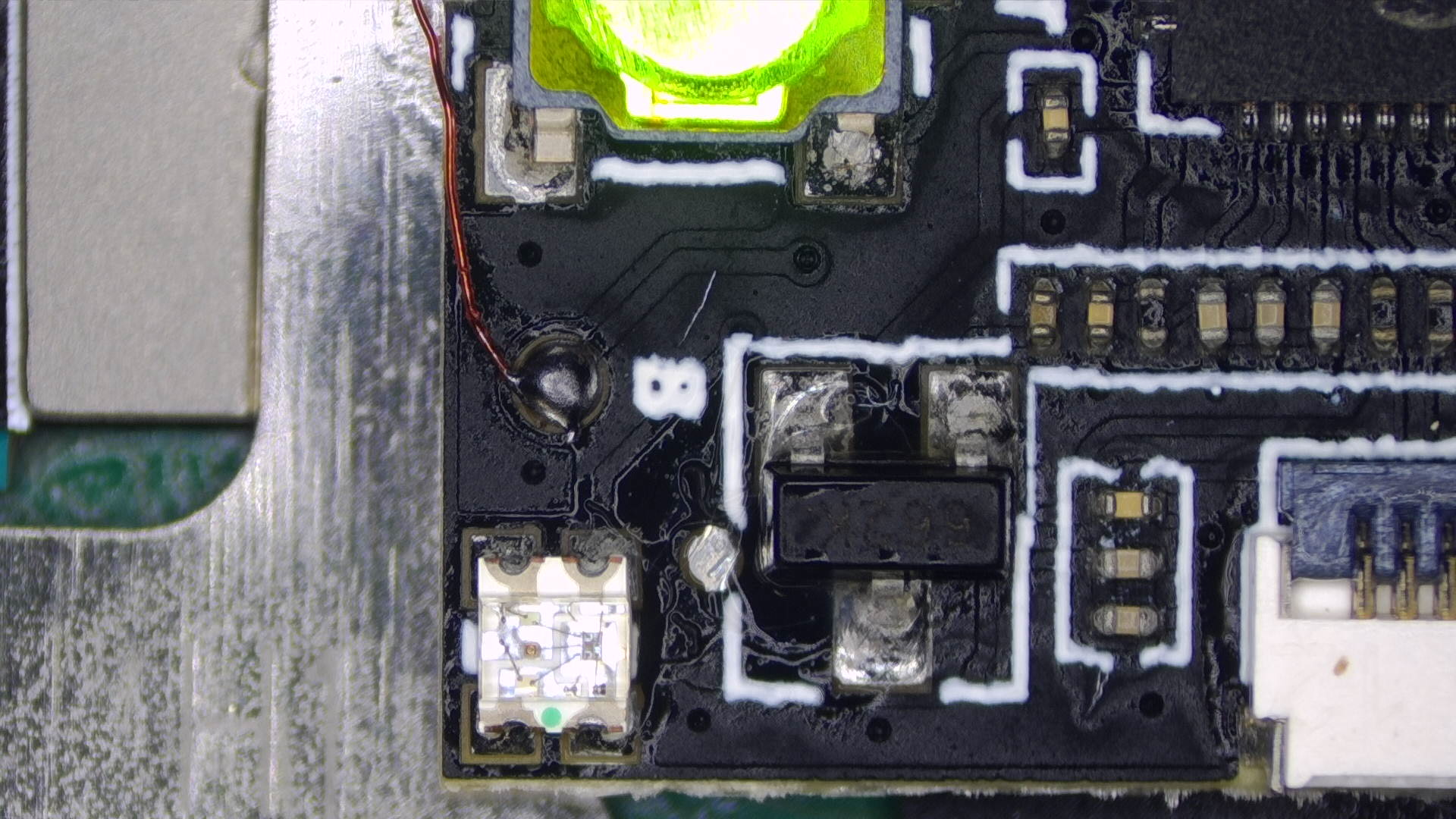

  17. Turn the motherboard back around and locate the B point on the back of the motherboard. It's located at the very bottom of the motherboard, to the left of the C shaped "cutout" for the left speaker cable. Solder a wire to the B point and solder the other end of the wire to the B point at the bottom of your modchip. bare-b b-soldered

  18. Apply flux and pre-tin the pads labeled SP1 and SP2 on the SoC ribbon cable. not-tinned tinned

  19. Place the SoC ribbon cable and align the ribbon cable with the capacitors on the SoC. bare-capacitors lined-up

  20. Tuck the anker points underneath the metal frame below the SoC and the MOSFET section of the ribbon cable underneath the frame between the SoC and RAM, then solder the ribbon cable down once lined up correctly.
    Apply flux and use your soldering iron to heat up the end of each capacitor together with the respective pad next to both ends of each capacitor of the SP1 and SP2 points, ensure the solder flows between the pad on the ribbon cable and end of the capacitor. soldered-down

  21. Your ribbon cable should now be secured in place with both ends of each capacitor soldered to the pads on the ribbon cable.

    • Optional: Place Kapton tape across your solder joints to prevent thermal paste from potentially corroding your solder joints in the future. It also helps in cases where you might have to rework your solder joints.
      kapton-tape

  22. Plug the SoC ribbon cable into the port on the top left of the modchip, make sure you lift the locking tab up first before inserting it. Once inserted, lock the locking tab again. test-setup

  23. Modify the IHS to make the SoC ribbon cable fit out of the top of the SoC section of the IHS and reinstall the IHS. (Don't forget to apply thermal paste in between the SoC and IHS!) ihs-modified

  24. Place a piece of double sided tape on top of the RAM section of the IHS, then place the modchip on top of it to secure it in place. Make sure no components (such as the SoC ribbon cable and wires you soldered onto the modchip) are under any kind of stress when doing this. test-setup-2

  25. Your Switch should now look like the image below. If it does, you can re-connect the battery connector, power button board and screen ribbon cable and power the console on. After the modchip glitches and trains (blinks blue, then white), you should be greeted with the No SD Card splash screen with the Picofly logo.

    • Note: Getting to the No SD Card screen does not always indicate success. Sometimes solder joints or electrical connections may be good enough for glitching but not for booting HOS (HorizonOS), please ensure that you test if your console boots by ensuring the console is off, then holding both volume buttons and pressing the power button once, letting go of the volume buttons when you see the Nintendo logo. If your Switch does not boot normally, please check if your console boots by removing the modchip (not the SoC ribbon cable), then turning the console on normally. If you still experience issues related to glitching/training, refer to the troubleshooting page.

    test-setup-2 test-setup-3

  26. Place a piece of Kapton tape (or other non-conductive material) on top of the modchip and reassemble the console. assembly-1 assembly-2 assembly-3 assembly-4

  27. Turn the Switch on and you should still end up at the No SD Card splash screen. If so, you've successfully followed and finished this guide. assembly-5

What's next?

From here, if you get the same result as I did, you can continue following the NH Server guide to set up CFW by clicking the button below. If you want to know more about the functionality of modchips, visit the Functionality of modchips page.

If you'd like to donate to me, visit the Credits section.

Continue to the NH Server guide

If you didn't get the same result as I did and are running into issues, please follow the troubleshooting section of this guide. It can be found here.
